ELVES BIKES SIZING GUIDE

Because our bikes are sold worldwide, we size by frame measurement in centimetres rather than S / M / L. Use the sizing tool below for a starting recommendation, then check your figures against the size tables.

Between sizes?

If your measurements put you between two frame sizes, either will usually work. The deciding factor is reach, or how long the bike feels once you are in the riding position.

Reach is driven mainly by upper body length, which we gauge using the Ape Index: your arm span divided by your height.

Positive Ape Index

Arm span longer than height, so a longer upper body. Consider the larger frame.

Negative Ape Index

Arm span shorter than height, so a shorter upper body. Consider the smaller frame.

Need help with sizing?

Send us your measurements and we will review them for you.

info@elvesbikes.com

Measurements we need
  • Height
  • Inside leg (inseam)
  • Arm span
  • Shoulder width

Check your saddle height

On the FALATH EXP and AMANYAR 1.0, check your current and correctly set saddle height against the minimum and maximum figures in the size table for the frame you are considering.

Aim to sit as close to the middle of that range as possible.

A note on responsibility

It is the customer's responsibility to ensure they are sized correctly. Elves Bikes can only give advice based on the information provided. We always recommend a professional bike sizing before buying.

FIND YOUR PERFECT FIT

Select your bike model and enter your body measurements. We'll recommend the ideal frame size and integrated handlebar specification for you.

How to measure

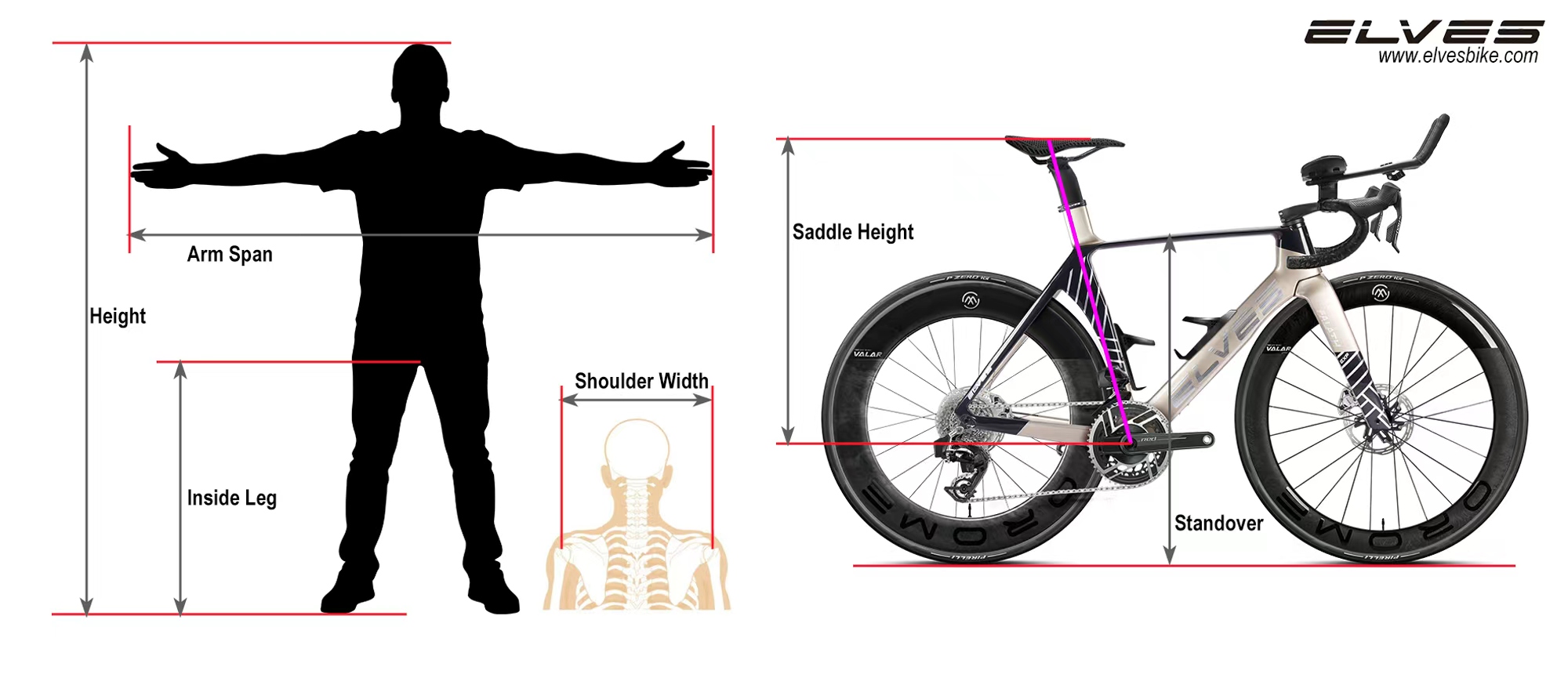

Measurement diagram. On the left, a standing figure marked with height, arm span, inside leg and shoulder width. On the right, a bicycle marked with saddle height, from the saddle top down to the bottom bracket, and standover, from the top tube to the ground.
Take the four body measurements shown on the left: height, arm span, inside leg and shoulder width. The right side shows the two frame dimensions quoted in the size tables: saddle height (saddle top to bottom bracket) and standover (top tube to the ground).
Your ELVES Bike
Your measurements
Standing straight, no shoes
Barefoot, floor to crotch, book held between the legs
Fingertip to fingertip, arms straight out
Across the back, shoulder bone to shoulder bone

All four measurements are required.

FALATH EXP

Size Guide
Frame size recommendations for FALATH EXP
Frame Your Height Standover Min Saddle Max Saddle
45 156–168cm 751mm 63cm 73cm
49 165–174cm 768mm 66cm 76cm
52 170–180cm 798mm 70cm 80cm
55 177–187cm 820mm 73cm 83cm
58 184–196cm 842mm 76cm 86cm

Swipe the table sideways to see the saddle columns — the frame size stays pinned on the left.

* Measured from the centre of the bottom bracket to the top centre of the saddle inline with the seat tube

FALATH EVO+

Size Guide
Frame size recommendations for FALATH EVO+
Frame Your Height Standover
46 158–168cm 738mm
49 165–173cm 760mm
52 168–175cm 790mm
54 170–178cm 810mm
56 173–184cm 826mm
59 176–186cm 850mm
61 184–192cm 870mm

AMANYAR 1.0

Size Guide
Frame size recommendations for AMANYAR 1.0
Frame Your Height Standover
45 160–172cm 727mm
48 170–178cm 750mm
51 176–188cm 779mm
54 185–195cm 819mm

FALATH PRO DISC & RIM

Size Guide
Frame size recommendations for FALATH PRO
Frame Your Height Standover
44 154–162cm 73cm
46 160–168cm 74cm
49 167–172cm 76cm
52 170–176cm 77.8cm
54 174–179cm 79cm
56 177–183cm 81cm
59 182–190cm 83cm

VANYAR PRO DISC

Size Guide
Frame size recommendations for VANYAR PRO DISC
Frame Your Height Standover
47 156–166cm 75cm
50 164–173cm 77cm
53 172–180cm 80cm
56 178–185cm 82cm
59 183–195cm 85cm
62 192–200cm 87cm

EGLATH ARX

Size Guide
Frame size recommendations for EGLATH ARX
Frame Your Height Standover
46 150–160cm 694mm
49 158–168cm 727mm
52 166–176cm 760mm
55 174–184cm 792mm
58 182–192cm 823mm

AVARI PRO DISC

Size Guide
Frame size recommendations for AVARI PRO DISC
Frame Your Height Standover
40 145–156cm 69cm
43 155–162cm 71cm
46 164–171cm 75cm
49 170–179cm 78cm
52 177–186cm 81cm

MORI AEROX

Size Guide
Frame size recommendations for MORI AEROX
Frame Your Height Standover
46 154–167cm 728mm
49 163–173cm 742mm
52 169–179cm 759mm
54 175–185cm 775mm
56 182–193cm 789mm
59 187–198cm 817mm

MORI GTX

Size Guide
Frame size recommendations for MORI GTX
Frame Your Height Standover
46 154–167cm 728mm
49 163–173cm 742mm
52 169–179cm 759mm
54 175–185cm 775mm
56 182–193cm 789mm
59 187–198cm 817mm

NANDOR PRO 29

Size Guide
Frame size recommendations for NANDOR PRO 29
Frame Your Height Standover
15" 155–168cm
17" 165–180cm
19" 175–190cm
