ELVES Amanyar 1.0  Carbon Triathlon Disc Framesets

Where Speed Meets Endurance
Triathletes demand speed, precision, and comfort, for peak race performance. The Amanyar 1.0 Disc combines optimised aerodynamics, the torsional strength required for effective power transfer, and the adjustability to achieve and maintain race-winning pace over varied distances.

Aerodynamic Superiority
Elves Bikes advanced engineering has produced an aerodynamically superior frameset, which has preserved the torsional strength of traditional double diamond design. To absorb race level braking forces, and with your safety at the forefront of our innovation, our research and development team have retained the seat stay to ensure reliable and stable stopping power. Our truncated airfoil design minimises surface areas exposed to the elements, consequently, we have engineered a frameset that specifically channels airflow efficiently, minimising resistance and reducing turbulence and drag.

Built to go the Distance
The Amanyar 1.0 has been designed with up to 2.25 litres of fuel and hydration storage, reducing the requirement for an in race stop, gaining you critical seconds. 500ml can be stored in the aerodynamic downtube bottle and up to 750ml behind the saddle. The remaining 1 litre is integrated inside the top-tube, utilising a bladder and hydration tube for handsfree hydration, whilst remaining in the aero position.

Engineered for your Toughest Race
The design of the Amanyar 1.0 positions the rider in an aggressive aerodynamic riding position to further reduce drag and improve efficiency. Applying the EPS and latex bladder moulding technique, we have constructed the frameset utilising the trusted Toray T800 Japanese carbon fibre, reinforced by Toray T1000 in key areas such as the headtube and bottom bracket to obtain the optimal strength to weight ratio. The result is a stiff, highly responsive riding experience that provides the rigidity to transfer raw watts into forward momentum, preventing critical power loss caused by frame flexing during pedaling . Elves Bikes commitment to continual improvement has led to the use of a T47 threaded bottom bracket for ease of building and ongoing maintenance.

Exceptional Handling and Choice
With Triathlons ranging from a sprint to an ultra-ironman, it’s challenging to find a “one bike fits all” solution. To support this, the Amanyar 1.0 is available with a choice of two adjustable aerobars, the Orome AeroRay Sport TT bar, or alternatively the AeroRay Pro Ergonomic TT bar. This aids triathletes to design their cockpit to their specification, in accordance with the individual race conditions and distance.

The modern design, with a modular stem and bar combination, provides a compact integrated-looking cockpit, offering exceptional handling around corners and responsiveness when standing on short climbs. Both the AeroRay Sport, and AeroRay Pro, come in two bar width sizes (400mm & 420mm) with an adjustable stem, front and back handlebar extensions, and left and right adjustable forearm rests. This optimal riding position allows triathletes to draw their upper body and arms both forwards and inwards into a tucked aero position, which ultimately minimises wind-distance drag, especially at high speeds.

Your True Colours
In collaboration with DSD, our design house in Hong Kong, and using the datasets of the pantones our riders have been selecting, the Amanyar 1.0 is available in seven beautifully designed standard colours. Our ethos stems from a deep understanding of unmet customer needs, driving our strategic and inclusive decision to ensure that custom painted frames, celebrating individualism, remain highly accessible to all. The Amanyar 1.0 is no exception, with ten different design templates, inspired by our customers, that utilise over sixty different colorways, and 4 decal choices, creating over 100,000 bespoke paint options.

Sizes & Compatibility

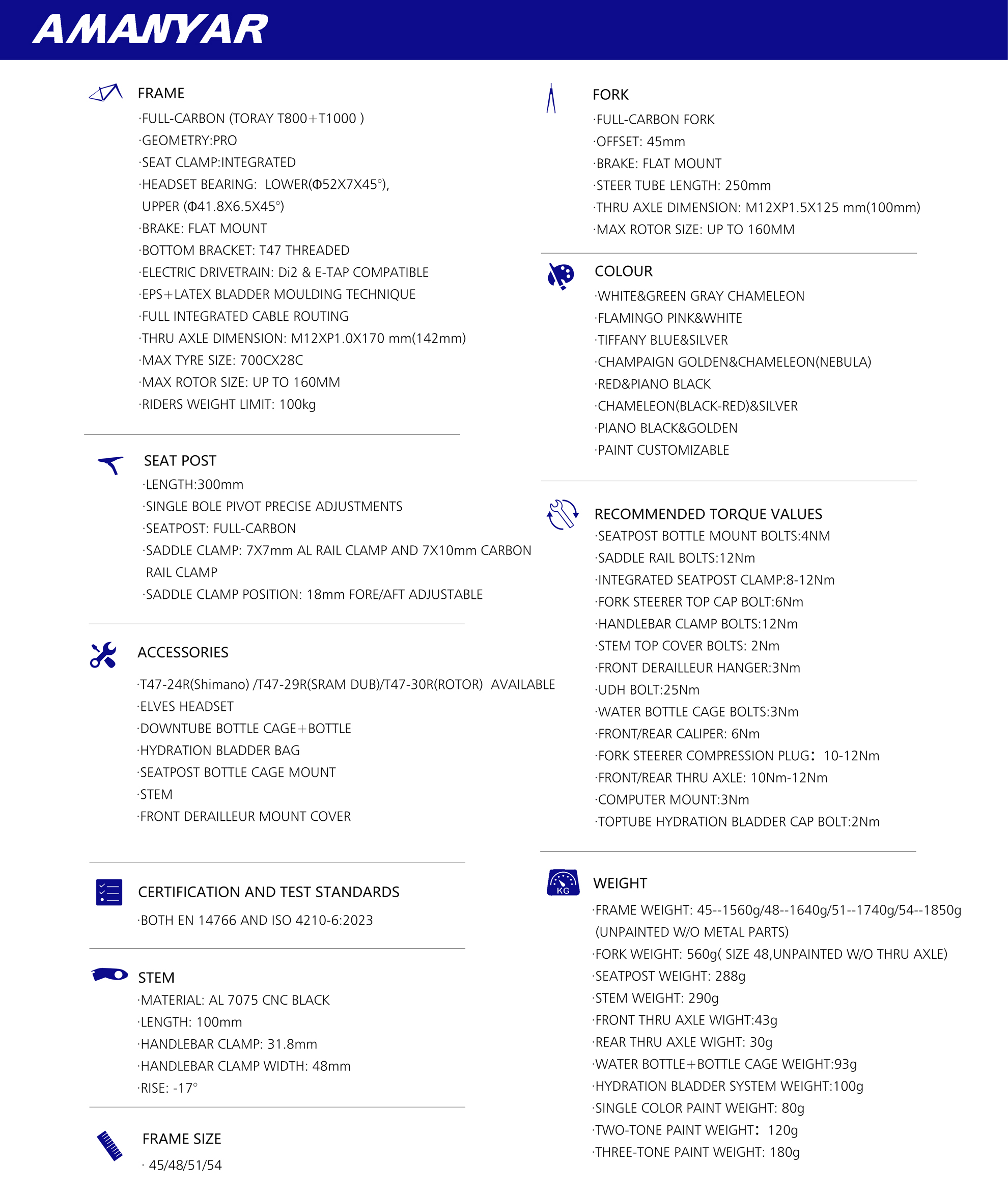

The Amanyar 1.0 is available in the following frame sizes, 45cm 48cm 51cm & 54cm, making it suitable for riders from 160cm-195cm. Please refer to the detailed geometry provided to gain further insight. The Frame is compatible with all Shimano and SRAM 12- speed groupsets. The frameset supports disc brakes and will accept tyres up to 28c.

Warranty
Elves Bikes design philosophy ensures our products are trusted and well respected within the industry in terms of safety and durability. However, to provide our riders with additional security, Elves bikes offer a 5 Year global warranty on our frames and forks, two years on our wheels, and one year on our handlebars and saddles.

Our Promise
Together, with our valued customers, Elves Bikes are globally transforming the price point for performance. We are committed to creating far greater rider equality through the production of quality products at affordable price points. We do not believe that riders should have to make the difficult choice and compromise between price or quality, at Elves Bikes, we deliver both. We strive to create inclusive opportunities in everything we do, ensuring that our riders globally can unleash their true cycling potential.





Functional Positioning Tailored for Triathlon Demands
The ELVES Amanyar Carbon Triathlon Disc Frameset is engineered specifically for athletes requiring a high-performance road bike frame for sale optimized for speed and endurance across varied triathlon distances. Its geometry supports a race-ready posture, catering to competitive triathletes and time trial specialists who demand efficient power transfer and aerodynamic advantage. The integrated hydration system enhances race efficiency by enabling hands-free fluid management, reducing pit-stop frequency. This frameset offers comprehensive size options (45 to 54 cm) to accommodate a wide range of rider statures, meeting professional and advanced amateur standards for race-day setup flexibility.

Technical Composition and Feature Specifications
Manufactured using premium Toray carbon fiber with a blend of T800 and strategic T1000 reinforcements at critical stress points like the bottom bracket and headtube, the frameset achieves an optimal balance between stiffness and weight. The truncated airfoil frame design significantly reduces drag while maintaining stability, critical for a disc frameset reliant on reliable braking and handling in diverse conditions. Its compatibility with Shimano and SRAM 12-speed drivetrain components alongside disc brakes supports contemporary high-performance systems. Accommodating tyres up to 28c enhances versatility for various course surfaces. Additionally, the modular stem and bar system coupled with adjustable aerobars enables precise cockpit customization for aerodynamic optimization and ergonomic alignment.

Industry Use and Competitive Value Proposition
In the competitive triathlon and time trial industry, this road bike carbon frame fulfills multiple operational requirements, such as aerodynamic efficiency, structural resilience, and integrated hydration management, thereby facilitating competitive race builds and long-distance endurance events. Its engineered composite construction and feature-rich design ensure durability under rigorous training and race conditions, delivering a reliable return on investment for cycling teams and frame builders. Custom paint options allow branding coherence for teams and sponsors, while the comprehensive warranty provides risk mitigation, essential for professional usage. The frameset’s system integration enables smooth compatibility with high-end components, optimizing performance across multiple race-day scenarios.


Product Advantages

Structural and Design Innovations Enhancing Integration
The Amanyar Disc Road Frame incorporates a truncated airfoil profile engineered to minimize aerodynamic drag without sacrificing braking responsiveness through its retained seat stay design. Utilization of Toray T800 with reinforced T1000 carbon layers at the headtube and bottom bracket zones provides an elevated strength-to-weight ratio pivotal for power transfer efficiency. The modular bar and stem system facilitates rapid adjustments and cockpit customizations, ensuring ergonomic adaptability. Additionally, the advanced hydration storage solution embedded within the frame architecture supports a total capacity of up to 2.25 litres across integrated bottles and a bladder, which seamlessly integrates into the bike’s profile, maintaining aerodynamic integrity and system coherence with high-performance drives.

Performance Advantages Emphasizing Rider Efficiency
This road bicycle frame excels in delivering high torsional rigidity, translating rider effort directly into propulsion with minimal energy loss. Its disc brake compatibility ensures consistent stopping power, critical in varied race environments and safety compliance. The accommodation of 28c tyres provides enhanced rolling efficiency and comfort without compromising frame aerodynamics, adapting to diverse course profiles. The adjustable aerobars, including the Orome AeroRay Sport TT and Pro Ergonomic TT options, offer tailored ergonomic positioning improving rider comfort over extended durations. These design considerations collectively maximize the frameset’s functional usability, optimizing rider output and minimizing fatigue in demanding competitive settings.
